Control Surface 19
02R96—Owner’s Manual
Monitor, Phones & Talkback Section
A

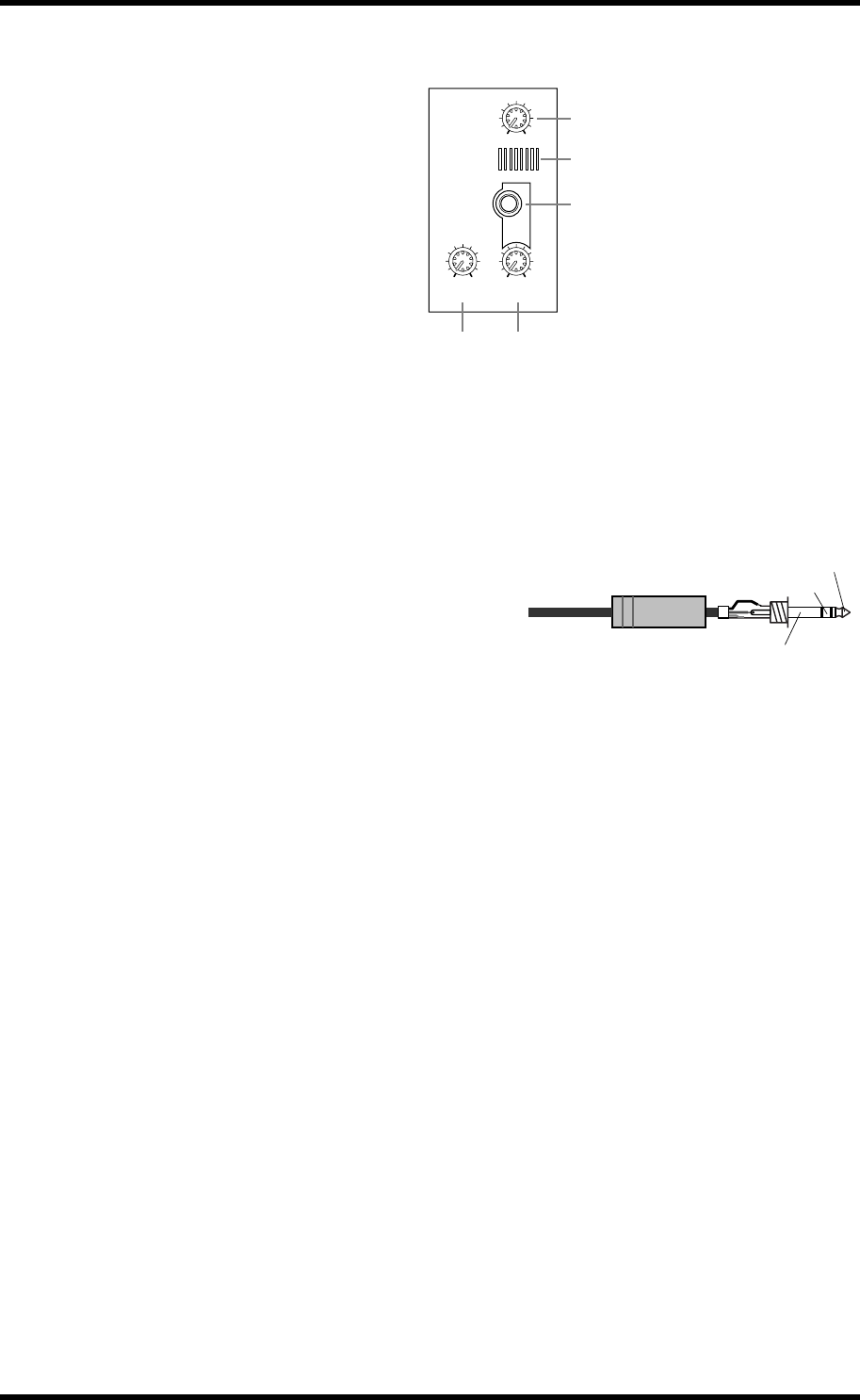

STUDIO LEVEL control
This control is used to set the level of the STUDIO MONITOR OUT. See “Studio Monitor-
ing” on page 115 for more information.
B PHONES LEVEL control
This control is used to set the level of the PHONES. See “Control Room Monitoring” on
page 114 for more information.
C PHONES jack
This stereo TRS phone jack outputs the Con-
trol room signal for monitoring via a pair of
stereo headphones.
D Talkback mic
This built-in microphone is used for talkback. See “Using Talkback” on page 121 for more
information.
E TALKBACK LEVEL control
This control is used to set the level of the built-in talkback microphone. See “Using Talk-
back” on page 121 for more information.
PHONES
LEVEL
010
010
010
TALKBACK LEVEL
STUDIO
LEVEL
PHONES
3
5
4
1 2
1/4" TRS phone plug
Tip (left)
Ring (right)
Sleeve (ground)
