Output Patching 55
02R96—Owner’s Manual

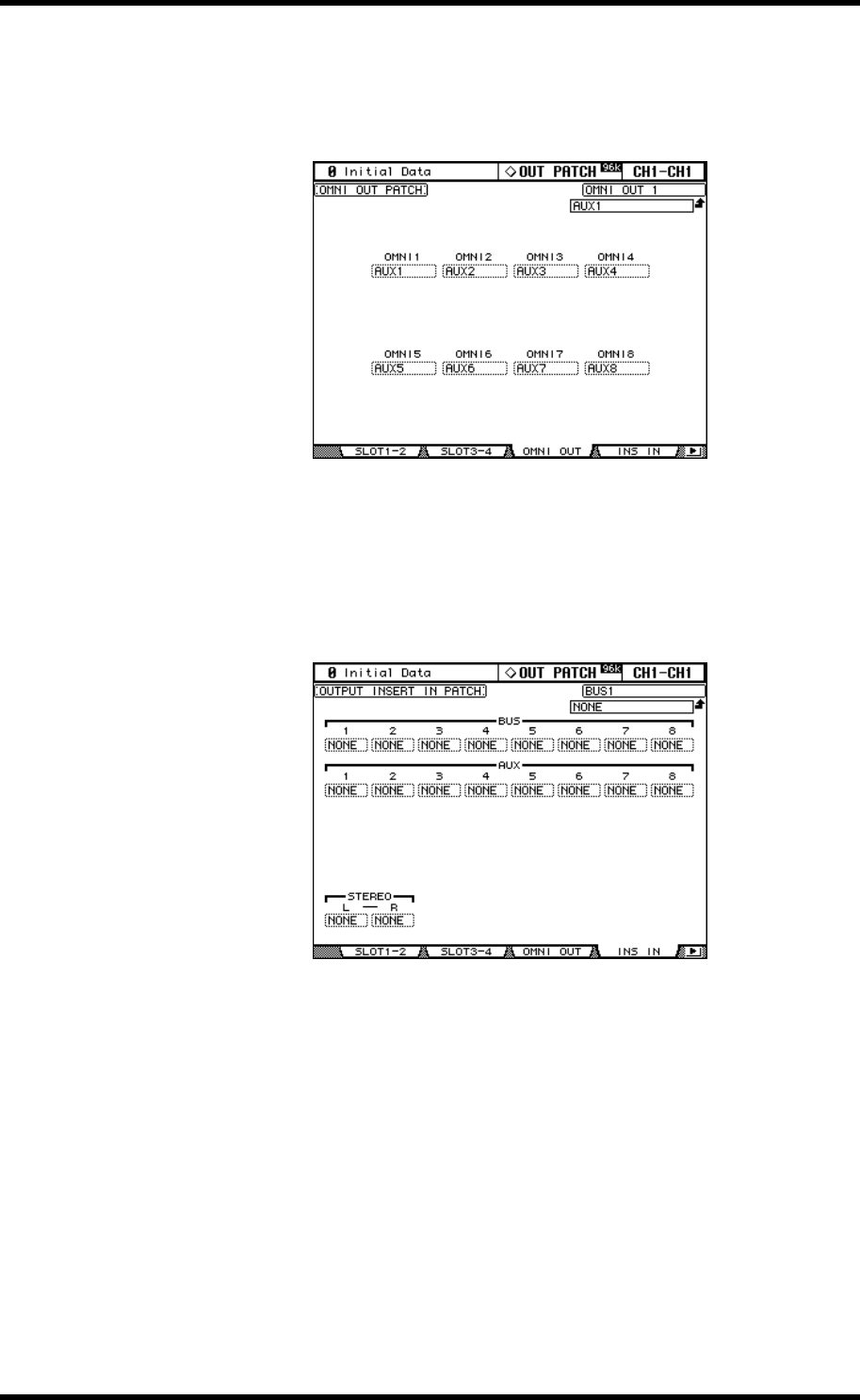

Patching Omni Outs
Bus Outs, Aux Sends, the Stereo Out, Input or Output Channel Insert Outs, or Surround
Monitor Channels can be patched to the Omni Outs. Omni Outs can be patched to Direct
Outs on the Direct Out Destination pages (see page 56).
When an Omni Out is patched to a Direct out (see page 56), and that Direct Out is assigned
on an Input Channel Routing page, the Omni Out patch cannot be changed here.
Output Channel Inserts Ins
AD Inputs, Slot Inputs, internal effects processor outputs, or Digital or Analog 2TR Inputs
can be patched to the Output Channel Insert Ins. The left and right channels of the Stereo
Out can be patched individually.
In addition to using the cursor buttons, Patch parameters can also be selected by using
[SEL] buttons 9–24 and the STEREO [SEL] button while the Master Layer is selected.
