14
Chapter 1 Playing Sounds

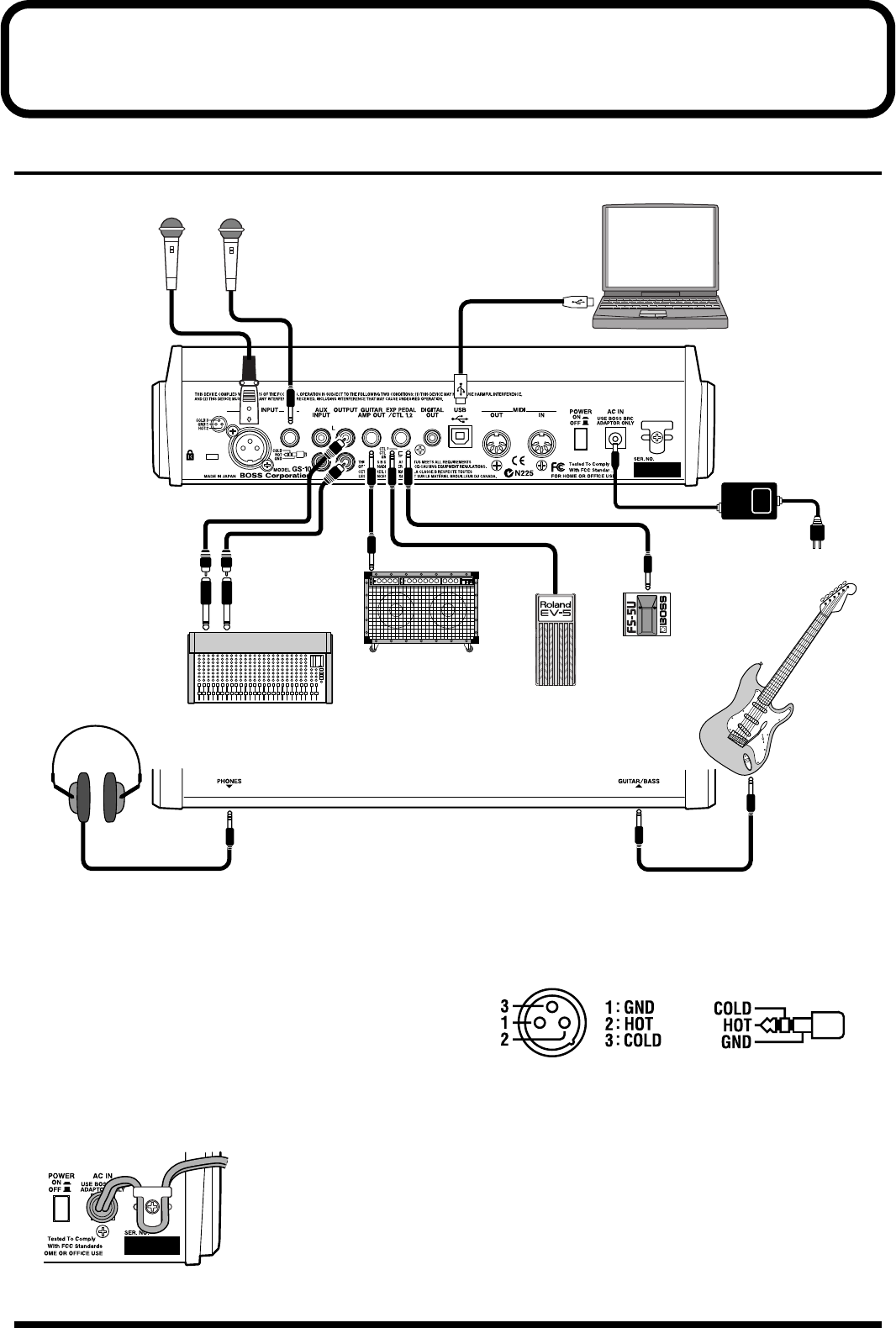

Making the Connections
fig.01-010
* To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power
on all devices before making any connections.
* Turn up guitar amp and audio amp volume levels and the GS-
10’s OUTPUT LEVEL only after turning on the power to all
connected devices.
● To prevent the inadvertent disruption of power to your
unit (should the plug be pulled out accidentally), and to
avoid applying undue stress to the AC adaptor jack,
anchor the power cord using the cord hook, as shown in
the illustration.
fig.01-020
● This instrument is equipped with balanced (XLR/TRS)
type MIC INPUT jacks. Wiring diagrams for these jacks
are shown below. Make connections after first checking
the wiring diagrams of other mic you intend to connect.
fig.01-021
* Not compatible with phantom power.
● Howling could be produced depending on the location
of mics relative to speakers. This can be remedied by:
1. Changing the orientation of the mic(s).
2. Relocating mic(s) at a greater distance from
speakers.
3. Lowering volume levels.
Foot Switch
(FS-5U, etc.)
Expression Pedal
(Roland EV-5, etc.)
Mic
Stereo Headphones
or
Guitar Amp
AC Adaptor
(BRC series)
Mixer
Guitar
or
Bass
Computer
