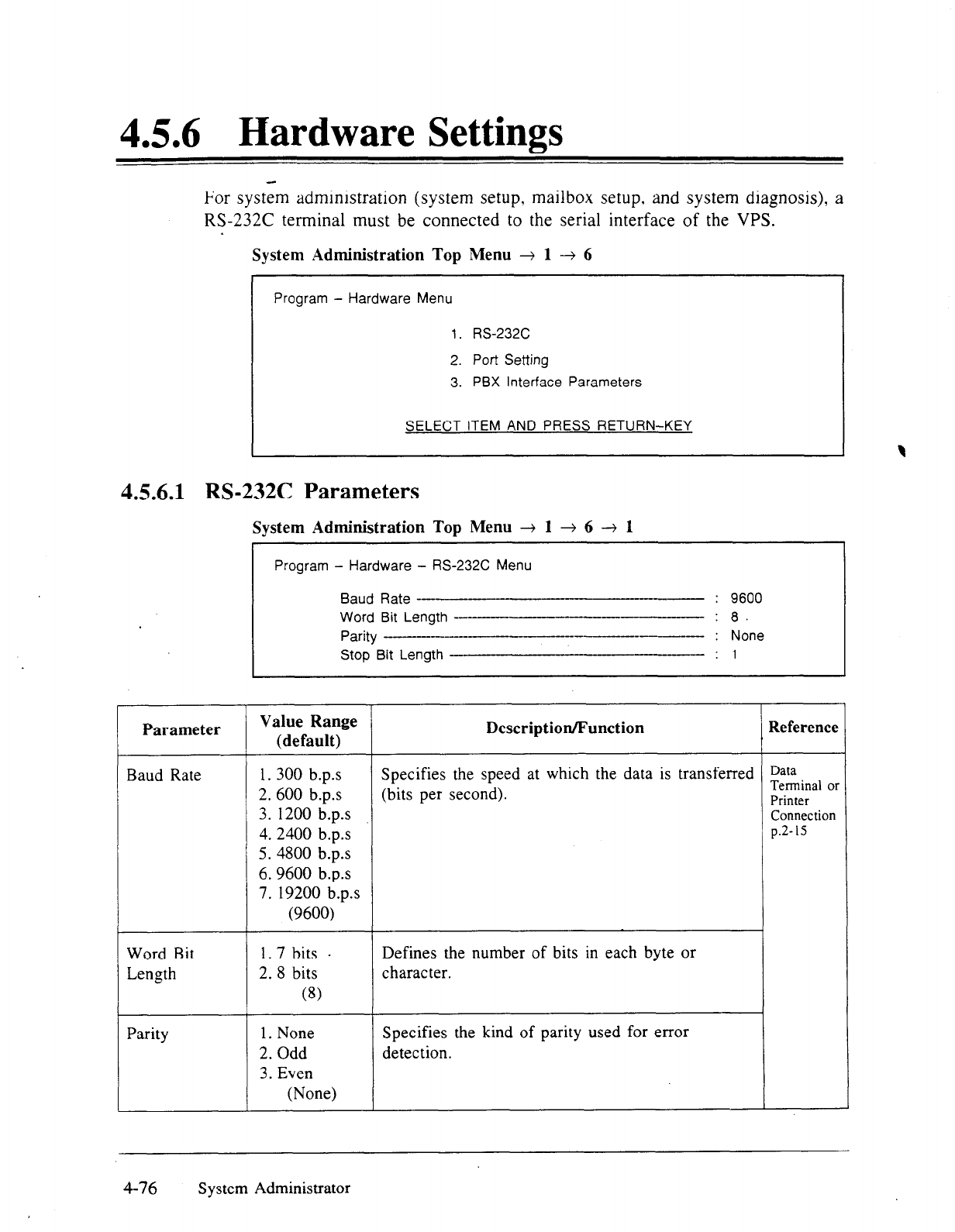

4.5.6 Hardware Settings
For system administration (system setup, mailbox setup, and system diagnosis), a
RS-232C terminal must be connected to the serial interface of the VPS.
System Administration Top Menu + 1 -+ 6
Program - Hardware Menu
1. RS-232C
2. Port Setting
3. PBX Interface Parameters
SELECT ITEM AND PRESS RETURN-KEY
4.5.6.1 RS-232C Parameters
System Administration Top Menu + 1 + 6 -+ I
Parameter
Baud Rate
Word Bit
Length
Parity
Program - Hardware - RS-232C Menu
Baud Rate ----p-- : 9600
Word Bit Length ---------------
: 8.
Parity
l_--___------ll__---
: None
Stop Bit Length
-: 1
Value Range
(default)
1. 300
b.p.s
2. 600
b.p.s
3. 1200
b.p.s
4. 2400
b.p.s
5. 4800
b.p.s
6.9600
b.p.s
7. 19200
b.p.s
(9600)
1. 7 bits .
2. 8 bits
63)
1. None
2.
Odd
3.
Even
(None)
Description/Function
1
Reference
Specifies the speed at which the data is transferred
(bits per second).
Data
Terminal or
Printer
Connection
p.2-15
Defines the number of bits in each byte or
character.
Specifies the kind of parity used for error
detection.
4-76
System Administrator
