I&tallation

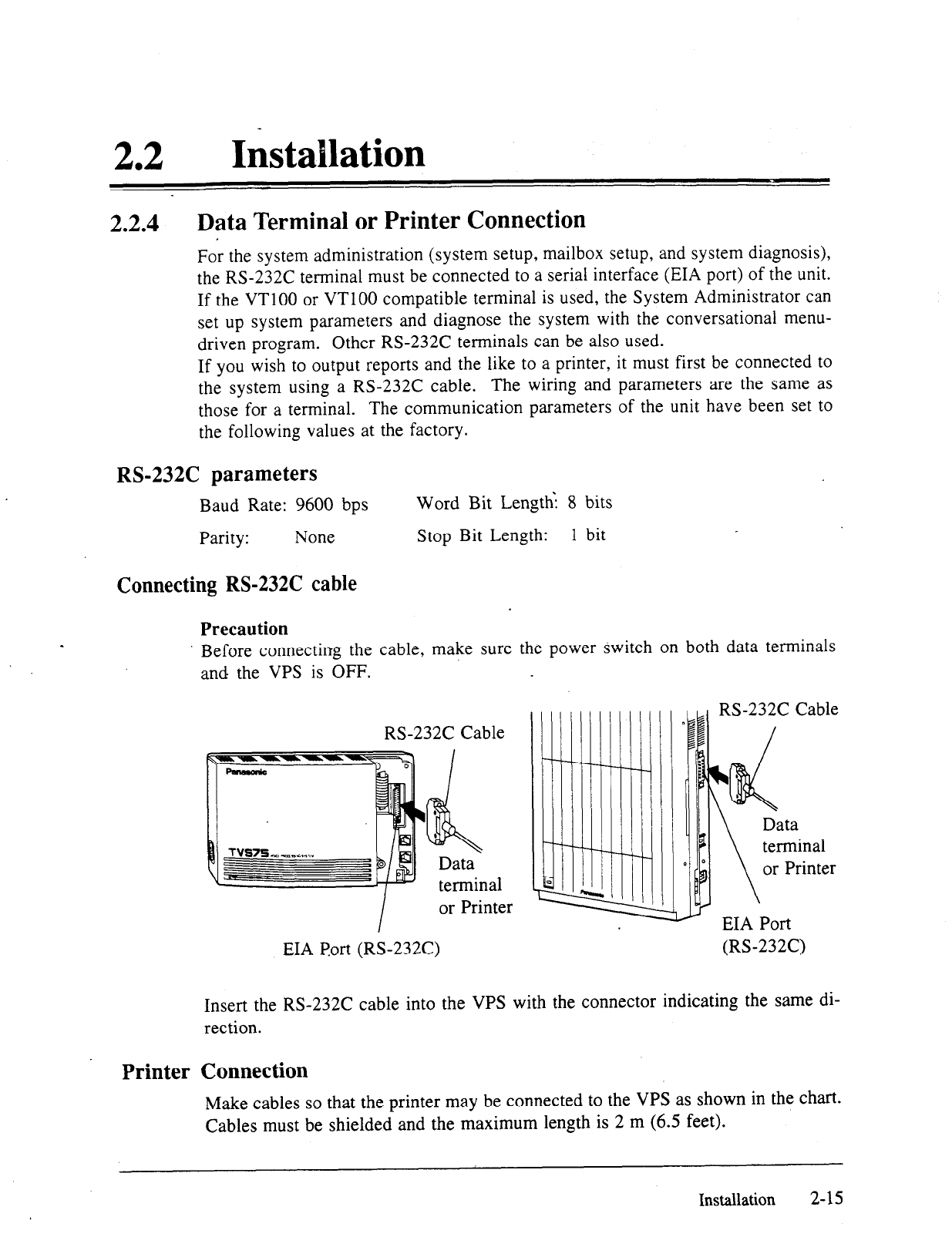

2.2.4 Data Terminal or Printer Connection
For the system administration (system setup, mailbox setup, and system diagnosis),
the RS-232C terminal must be connected to a serial interface (EIA port) of the unit.
If the VT100 or VT100 compatible terminal is used, the System Administrator can
set up system parameters and diagnose the system with the conversational menu-
driven program.
Other RS-232C terminals can be also used.
If you wish to output reports and the like to a printer, it must first be connected to
the system using a RS-232C cable.
The wiring and parameters are the same as
those for a terminal. The communication parameters of the unit have been set to
the following values at the factory.
RS-232C parameters
Baud Rate: 9600 bps
Parity: None
Word Bit Length:. 8 bits
Stop Bit Length:
1 bit
Connecting RS-232C cable
Precaution
Before connecting the cable, make sure the power switch on both data terminals
and the VPS is OFF.
RS-232C Cable
- EIA Port
EIA Port (RS-232C) (RS-232C)
Insert the RS-232C cable into the VPS with the connector indicating the same di-
rection.
Printer Connection
Make cables so that the printer may be connected to the VPS as shown in the chart.
Cables must be shielded and the maximum length is 2 m (6.5 feet).
Installation 2-15
