185
Settings Common to All Modes (System Function)
Settings Common to All Modes (System Function)
Pedal 1, 2 Polarity
Selects the polarity of the pedal. On some pedals, the electrical signal
output by the pedal when it is pressed or released is the opposite of
other pedals. If your pedal has an effect opposite of what you expect,
set this parameter to “REVERSE.” If you are using a Roland pedal
(that has no polarity switch), set this parameter to “STANDARD.”
Value: STANDARD, REVERSE
Beam Sens (D Beam Sensitivity)
This sets the D Beam Controller’s sensitivity. The higher the value
set, the more readily the D Beam Controller goes into effect.
Normally you will leave this at “5.”
Value: 1–10

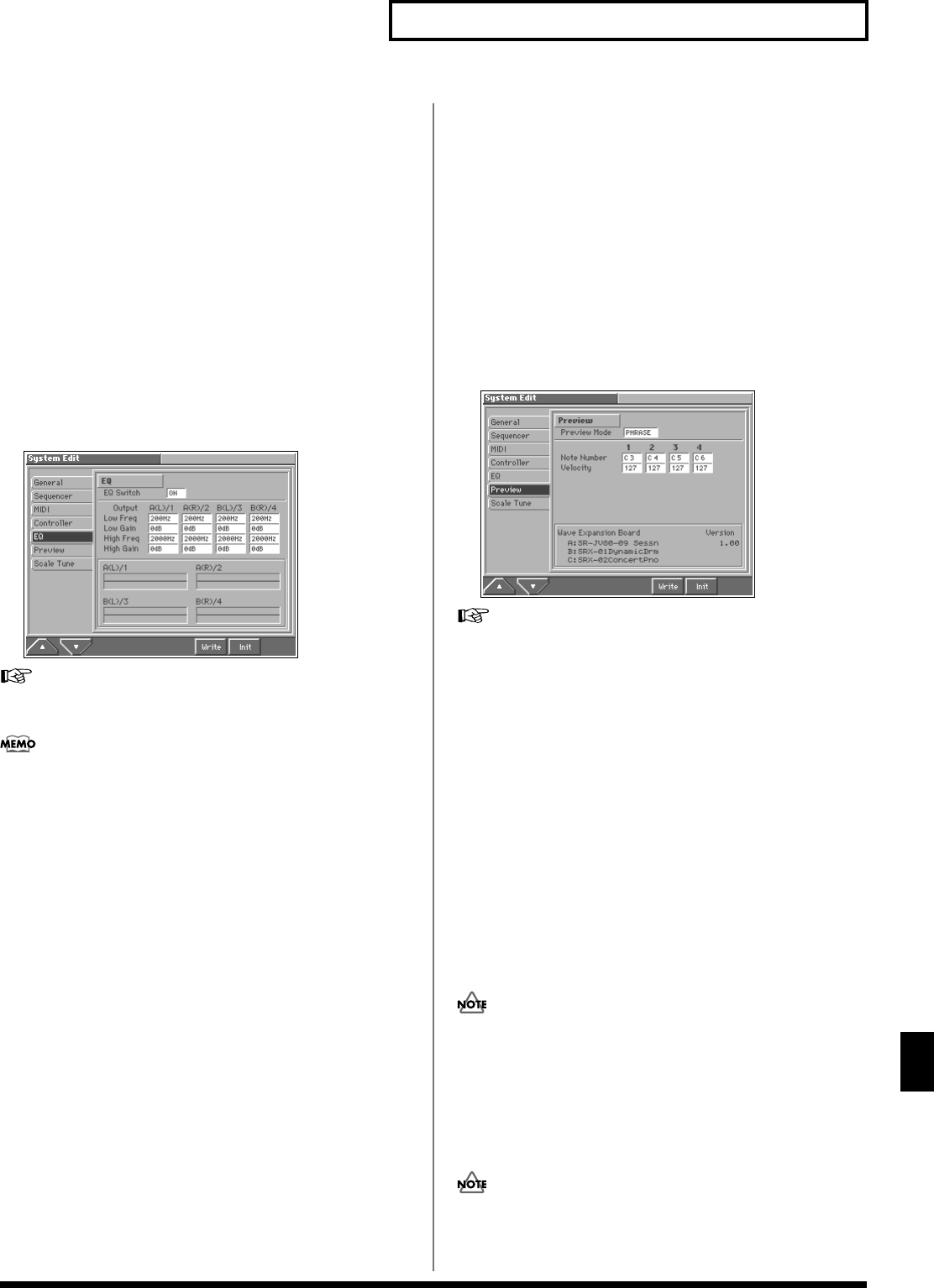

Equalizer settings (EQ)
fig.15-07_50
For details on the setting, refer to “How to Make the System
Function Settings” (p. 178).
Equalizer settings are made separately for each output jack
Output A(L)/1: OUTPUT A (MIX) jack (L (MONO))/
INDIVIDUAL 1 jack
Output A(R)/2: OUTPUT A (MIX) jack (R)/INDIVIDUAL 2 jack
Output B(L)/3: OUTPUT B jack (L)/INDIVIDUAL 3 jack
Output B(R)/4: OUTPUT B jack (R)/INDIVIDUAL 4 jack
EQ
EQ Switch (Equalizer Switch)
Switch the equalizer on/off.
Value: BYPASS, ON
Low Freq (Low Frequency)
Selects the frequency of the low range.
Value: 200, 400 Hz
Low Gain
Adjusts the gain of the low frequency. Positive (+) settings will
emphasize the low-frequency range.
Value: -15– +15 dB
High Freq (High Frequency)
Selects the frequency of the high range.
Value: 2000, 4000, 8000 Hz
High Gain
Adjusts the gain of the high frequency. Positive (+) settings will
emphasize the high-frequency range.
Value: -15– +15 dB
Phrase Preview Settings (Preview)
Specify how the phrase will sound when you press [8 (Prevu)] in the
Patch List window.
fig.15-08_50
For details on the setting, refer to “How to Make the System
Function Settings” (p. 178).
Preview
Preview Mode
SINGLE: The notes specified by Note Number 1–4 parameter will
sound successively one by one.
CHORD: The notes specified by Note Number 1–4 parameter will
sound simultaneously.
PHRASE: The Phrase associated with the patch’s type/category is
played.
Note Number 1–4 (Preview Note Number 1–4)
Specify the pitch of the four notes that will sound when the Preview
Mode parameter is set to “SINGLE” or “CHORD.”
Value: C-1–G9
If “PHRASE” is selected for the Preview Mode parameter, these
settings will have no effect.
Velocity 1–4 (Preview Velocity 1–4)
Specify the velocity of the four notes that will sound when the
Preview Mode parameter is set to “SINGLE” or “CHORD.”
Value: 0–127
If “PHRASE” is selected for the Preview Mode parameter, these
settings will have no effect.
