■ Connect a MIDI keyboard and play the sounds
● Making connections

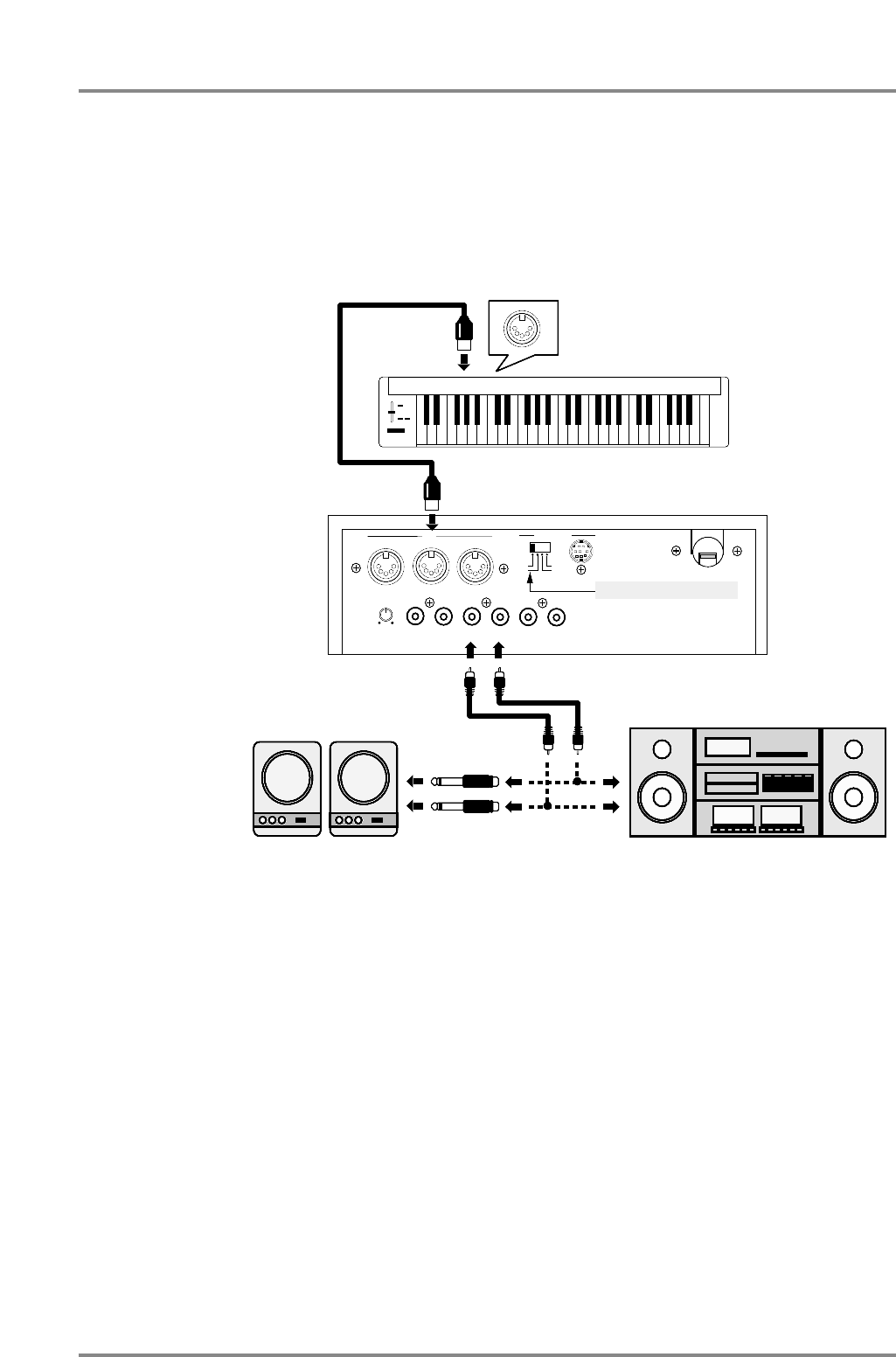

* This section explains how to connect this unit to a MIDI keyboard and play the sounds. If you
wish to connect a sequencer or personal computer to this unit, refer to p.120.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the vol-
ume, and turn off the power on all devices before making any connections.
Set the Computer select switch located on the back of this unit to MIDI.
* At the factory settings, no sound will be sent from output2 jacks.(p.29)
Powered Speaker
Stereo set
OUT/THRU IN B
IN A
MIDI
Mac
PC-1PC-2
MIDI
COMPUTER
INPUT
L
R
OUTPUT1
L
R
INPUT
VOLUME
This unit
MIDI keyboard
MIDI OUT
LINE IN
INPUT
Left
Right
OUTPUT2
L
R
Computer Switch : MIDI
