Low Gain -12 - +12 [17]
Adjust the low frequency gain.
Hi Gain (High gain ) -12 - +12 [18]
Adjust the high frequency gain.
Level (Output level ) 0 - 127 [20]
Adjust the output level.
38: DS → Chorus (Distortion → Chorus)
[02H, 03H]
This effect connects a distortion and a chorus in
series.
DS Drive (Distortion drive ) 0 - 127 [1]
Adjust the degree of distortion. The volume will
change together with the degree of distortion.
+DS Pan (Distortion output pan )
L63 - 0 - R63 [2]
Adjust the stereo location of the distortion sound.
L63 is far left, 0 is center, and R63 is far right.
DS Amp (Distortion Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [3]
Select the type of guitar amp.
Small : small amp
BltIn : single-unit type amp
2-Stk : large double stack amp
3-Stk : large triple stack amp
DS Amp Sw (Distortion Amp Switch) Off/On [4]
Turn DS Amp on/off.
Cho Dly (Chorus pre delay ) 0 - 100m [6]
Adjust the time delay from when the direct sound
begins until the chorus sound is heard.
Cho Rate (Chorus rate ) 0.05 - 10.0 [7]
Adjust the modulation speed of the chorus effect.
Cho Depth (Chorus depth ) 0 - 127 [8]
Adjust the modulation depth of the chorus effect.
#Cho Bal (Chorus balance ) D> 0E - D 0<E [10]
Adjust the volume balance between the sound
which passes through the chorus and the sound
which does not. With a setting of D>0E, only the
distortion sound will be output, and with a setting of
D 0<E, the distortion sound which passes through
the chorus will be output.
“D” or “E” on the display respectively means
D(direct sound) or E(effect sound) values of 100.
Low Gain -12 - +12 [17]
Adjust the low frequency gain.
Hi Gain (High gain ) -12 - +12 [18]
Adjust the high frequency gain.
Level (Output level ) 0 - 127 [20]
Adjust the output level.
39: DS → Flanger (Distortion → Flanger)
[02H, 04H]
This effect connects a distortion and a flanger in
series.
DS Drive (Distortion drive ) 0 - 127 [1]
Adjust the degree of distortion. The volume will
change together with the degree of distortion.
+DS Pan (Distortion output pan )
L63 - 0 - R63 [2]
Adjust the stereo location of the distortion sound.
L63 is far left, 0 is center, and R63 is far right.
DS Amp (Distortion Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [3]
Select the type of guitar amp.
Small : small amp
BltIn : single-unit type amp
2-Stk : large double stack amp
3-Stk : large triple stack amp
DS Amp Sw (Distortion Amp Switch) Off/On [4]
Turn DS Amp on/off.
FL Dly (Flanger pre delay ) 0 - 100m [6]
Adjust the time delay from when the direct sound
begins until the flanger sound is heard.
FL Rate (Flanger rate ) 0.05 - 10.0 [7]
Adjust the modulation speed of the flanger effect.
FL Depth (Flanger depth ) 0 - 127 [8]
Adjust the modulation depth of the flanger effect.
FL Fb (Flanger feedback level ) -98% - +98% [9]
Adjust the proportion (%) of the flanger sound that
is fed back into the effect. Negative (-) settings will
invert the phase.

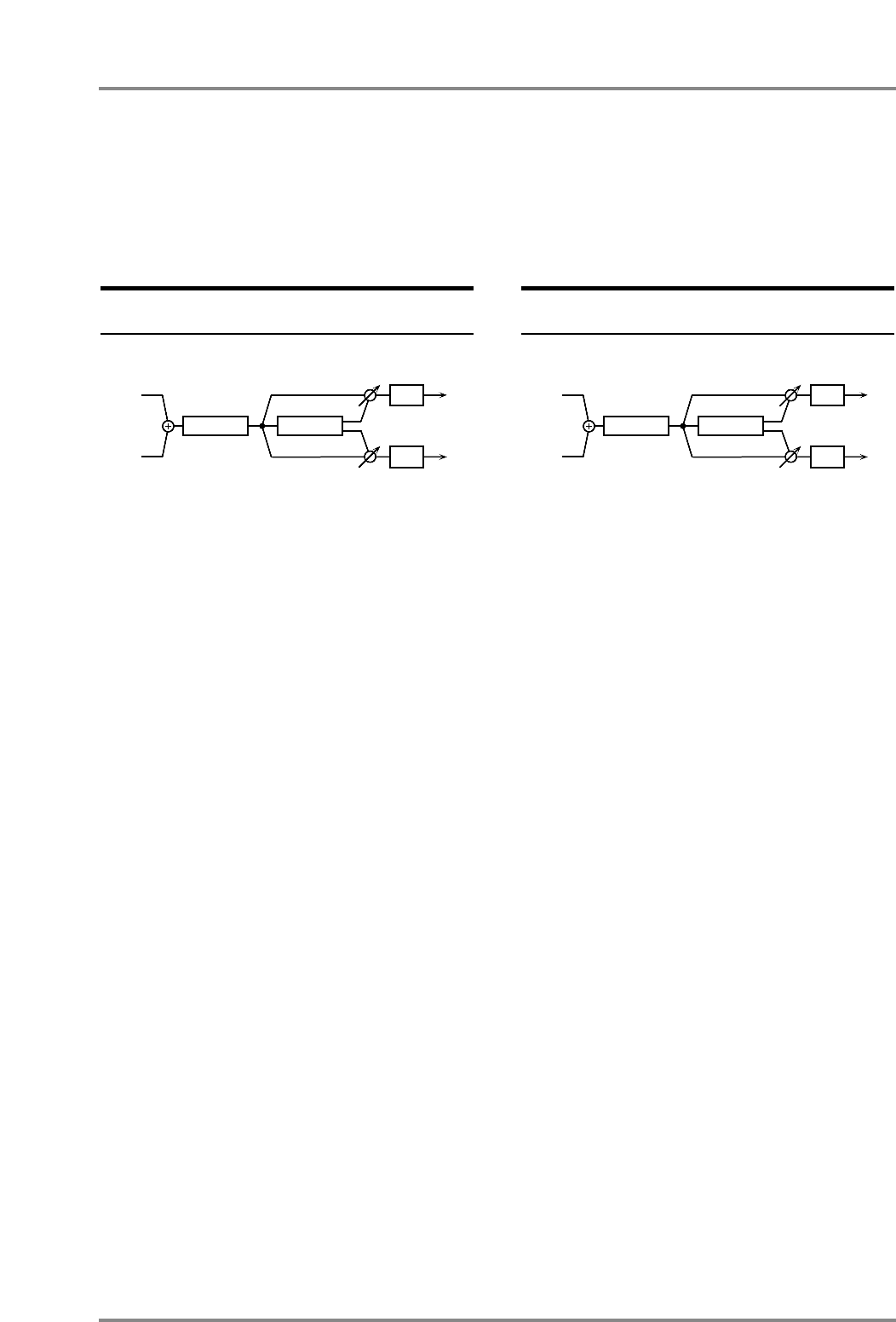

L
R
Chorus
Distortion
EQ
EQ
Balance
L
R
Flanger
Distortion
EQ
EQ
Balance
Chapter 4. Insertion Effects
73
