Amp Sw (Amp switch) Off/On [3]
Turn the Amp Type on/off.
Low Gain -12 - +12 [17]
Adjust the gain of the low frequency range.
Hi Gain (High gain) -12 - +12 [18]
Adjust the gain of the high frequency range.
#Pan (Output pan) L63 - 0 - R63 [19]
Adjust the stereo location of the output sound. L63
is far left, 0 is center, and R63 is far right.
Level (Output level) 0 - 127 [20]
Adjust the output level.
6: Distortion [01H, 11H]
This effect produces a more intense distortion than
Overdrive.
+Drive 0 - 127 [1]
Adjust the degree of distortion.
Amp Type (Amp simulator type)
Small/BltIn/2-Stk/3-Stk [2]
Select the type of guitar amp.
Small : small amp
BltIn : single-unit type amp
2-Stk : large double stack amp
3-Stk : large triple stack amp
Amp Sw (Amp switch) Off/On [3]
Turn the Amp Type on/off.
Low Gain -12 - +12 [17]
Adjust the gain of the low frequency range.
Hi Gain (High gain) -12 - +12 [18]
Adjust the gain of the high frequency range.
#Pan (Output pan) L63 - 0 - R63 [19]
Adjust the stereo location of the output sound. L63
is far left, 0 is center, and R63 is far right.
Level (Output level) 0 - 127 [20]
Adjust the output level.
❍ Effects that modulate the sound (modula-
tion type)
7: Phaser [01H, 20H]
A phaser adds a phase-shifted sound to the original
sound, producing a twisting modulation that creates
spaciousness and depth.
+Manual 100 - 8.0k [1]
Adjust the basic frequency from which the sound
will be modulated.
#Rate 0.05 - 10.0 [2]
Adjust the frequency (period) of modulation.
Depth 0 - 127 [3]
Adjust the depth of modulation.
Reso (Resonance) 0 - 127 [4]
Adjust the amount of emphasis added to the fre-
quency range surrounding the basic frequency
determined by the Manual parameter setting.
Mix (Mix level) 0 - 127 [5]
Adjust the ratio with which the phase-shifted sound
is combined with the direct sound.
Low Gain -12 - +12 [17]
Adjust the gain of the low frequency range.
Hi Gain (High gain) -12 - +12 [18]
Adjust the gain of the high frequency range.
Level (Output level) 0 - 127 [20]
Adjust the output level.
8: Auto Wah [01H, 21H]
The Auto Wah cyclically controls a filter to create cyclic
change in timbre.
Fil Type (Filter Type) LPF/BPF [1]
Select the type of filter.
LPF : The wah effect will be applied over a
wide frequency range.
BPF : The wah effect will be applied over a
narrow frequency range.
Sens (Sensitivity) 0 - 127 [2]
Adjust the sensitivity with which the filter is con-
trolled. If this value is increased, the filter frequency
will change more readily in response to the input
level.
+Manual 0 - 127 [3]
Adjust the center frequency from which the effect is
applied.

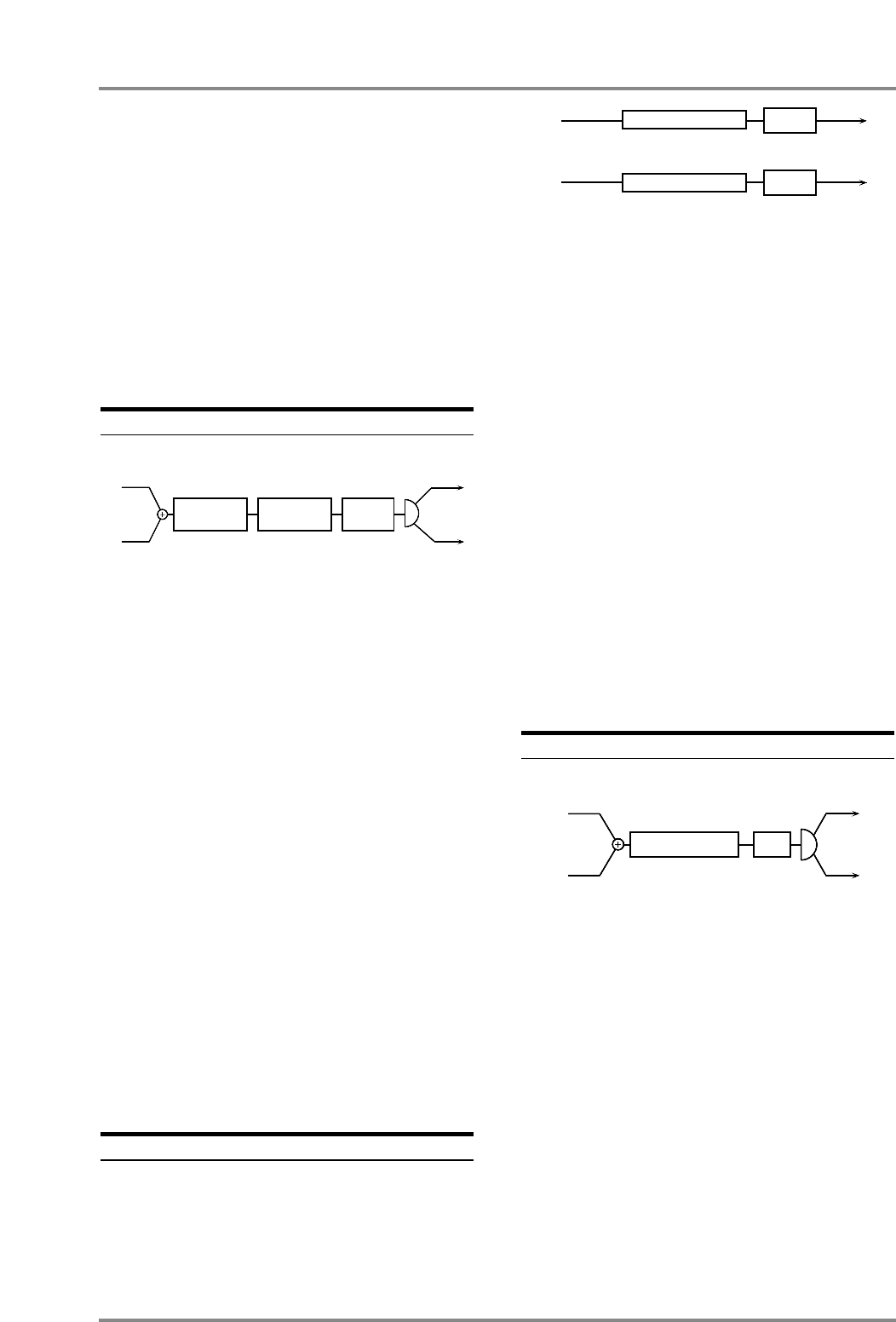

Amp
Simulator
EQ
Pan
L
R
Distortion
L
R
EQ
Phaser
Phaser
EQ
L
R
Wah
EQ
Pan
