49: GTR Multi 2 (Guitar Multi2) [04H, 01H]
Guitar Multi 2 provides Compressor (Cmp), Overdrive
or Distortion (OD), Equalizer (EQ), and Chorus or
Flanger (CF) effects connected in series.
<Cmp (Compressor)>
Cmp Atck (Compressor Attack) 0 - 127 [1]
Adjust the time over which the sound will rise after it
is input.
Cmp Sus (Compressor Sustain) 0 - 127 [2]
Adjust the time over which low-level sounds are
boosted until they reach a specified volume.
Increasing the value will shorten the time. When the
value is modified, the level will also change.
Cmp Level (Compressor Level) 0 - 127 [3]
Adjust the volume of the compressor sound.
Cmp Sw (Compressor Switch) Off/On [4]
Turn the compressor on/off.
<OD (Overdrive/Distortion)>
OD Sel (OD Select) Odrv/Dist [5]
Select either Overdrive or Distortion.
+OD Drive (OD Drive) 0 - 127 [6]
Adjust the depth of distortion. The volume will
change together with the depth of distortion.
OD Amp (OD Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [7]
Select the type of guitar amp
Small : small amp
BltIn : single-unit type amp
2-Stk : large double stack amp
3-Stk : large triple stack amp
OD Amp Sw (OD Amp Switch) Off/On [8]
Turn OD Amp on/off.
OD Sw (OD Switch) Off/On [9]
Turn Overdrive or Distortion on/off.
<EQ (Equalizer)>
EQ L Gain (EQ Low Gain) -12 - +12 [10]
Adjust the low-range gain of the equalizer.
EQ M Fq (EQ Mid Frequency) 200 - 6.3k [11]
Set the center frequency for the equalizer mid-
range.
EQ M Q (EQ Mid Q) 0.5/1.0/2.0/4.0/9.0 [12]
Adjust the width of the area centered at the EQ M
Fq setting in which the gain will be affected. The
area affected will become narrower as this value is
increased.
EQ M Gain (EQ Mid Gain) -12 - +12 [13]
Adjust the gain of the area specified by the EQ M
Fq parameter and the EQ M Q parameter.
EQ H Gain (EQ High Gain) -12 - +12 [14]
Adjust the high-range gain of the equalizer.
<CF (Chorus/Flanger)>
CF Sel (CF Select) Chorus/Flangr [15]
Select either Chorus or Flanger.
CF Rate 0.05 - 6.40 [16]
Adjust the speed of modulation for the chorus or
flanger.
CF Depth 0 - 127 [17]
Adjust the depth of modulation for the chorus or
flanger.
CF Fb (CF Feedback) -98% - +98% [18]
Adjust the amount (%) of the flanger sound that will
be returned to the input. Negative (-) values will
invert the phase.
In the case of Chorus, this will have no effect.
#CF Mix (CF Mix) 0 - 127 [19]
Adjust the volume of the chorus or flanger sound.
Level (Output level ) 0 - 127 [20]
Adjust the output level.
50: GTR Multi 3 (Guitar Multi3) [04H, 02H]
Guitar Multi 3 connects Wah (Wah), Overdrive or
Distortion (OD), Chorus or Flanger (CF), and Delay
(Dly) effects in series.
<Wah>
Wah Fil (Wah Filter Type) LPF/BPF [1]
Select the type of filter.
LPF : The wah effect will be produced over
a broad frequency range.
BPF : The wah effect will be produced in a
narrow frequency range.
+Wah Man (Wah Manual) 0 - 127 [2]
Set the center frequency at which the effect will be
produced.

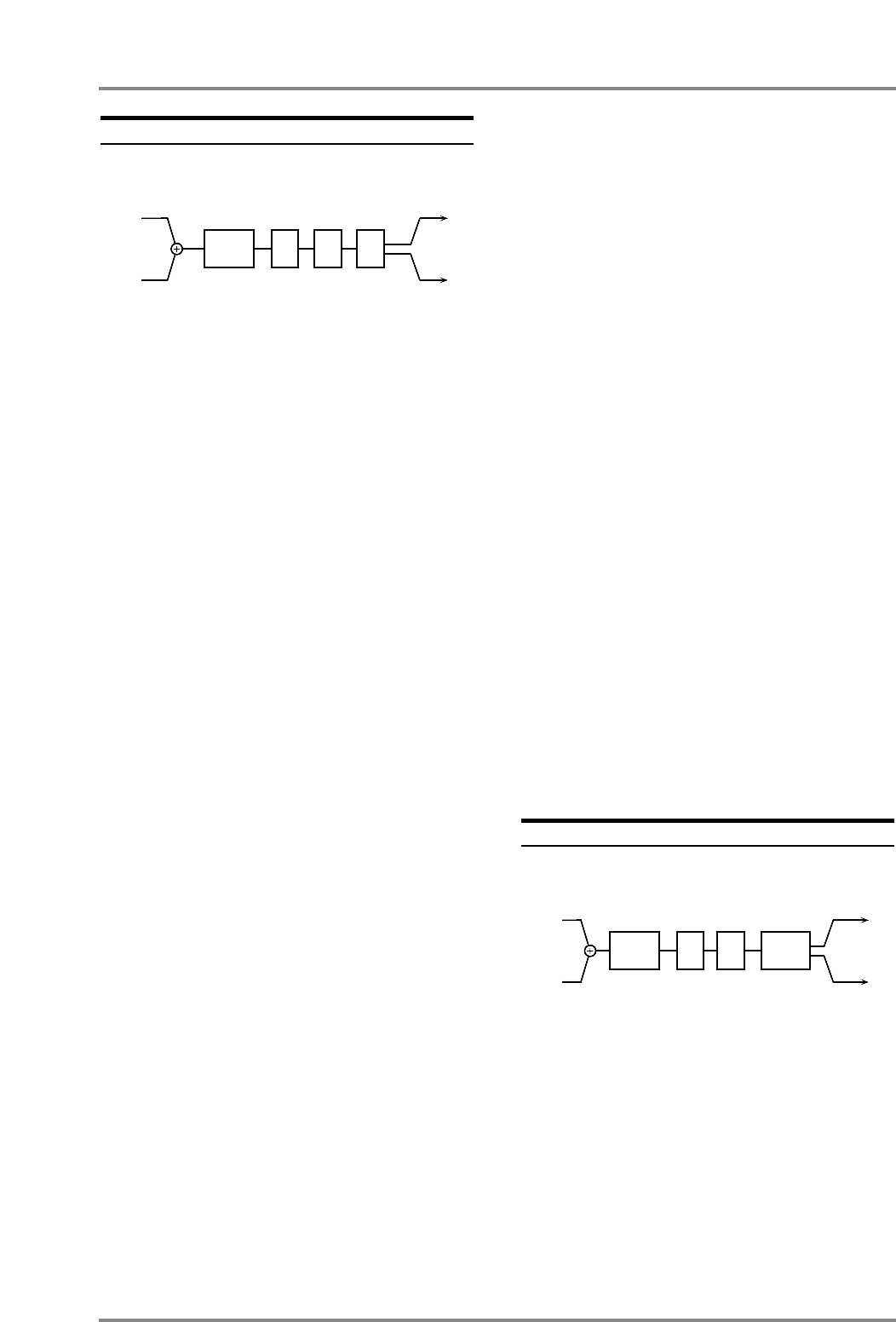

L
R
Cmp
CFEQ
OD
L
R
DelayWah
CF
OD
