Part group A
Part A1 - A16
Part group B
Part B1 - B16
OUTPUT
L
R
Reverb Level
Chorus Level
Delay Level
Reverb Send Level
Chorus Send Level
Delay Send Level
Reverb Send Level
Chorus Send Level
Delay Send Level

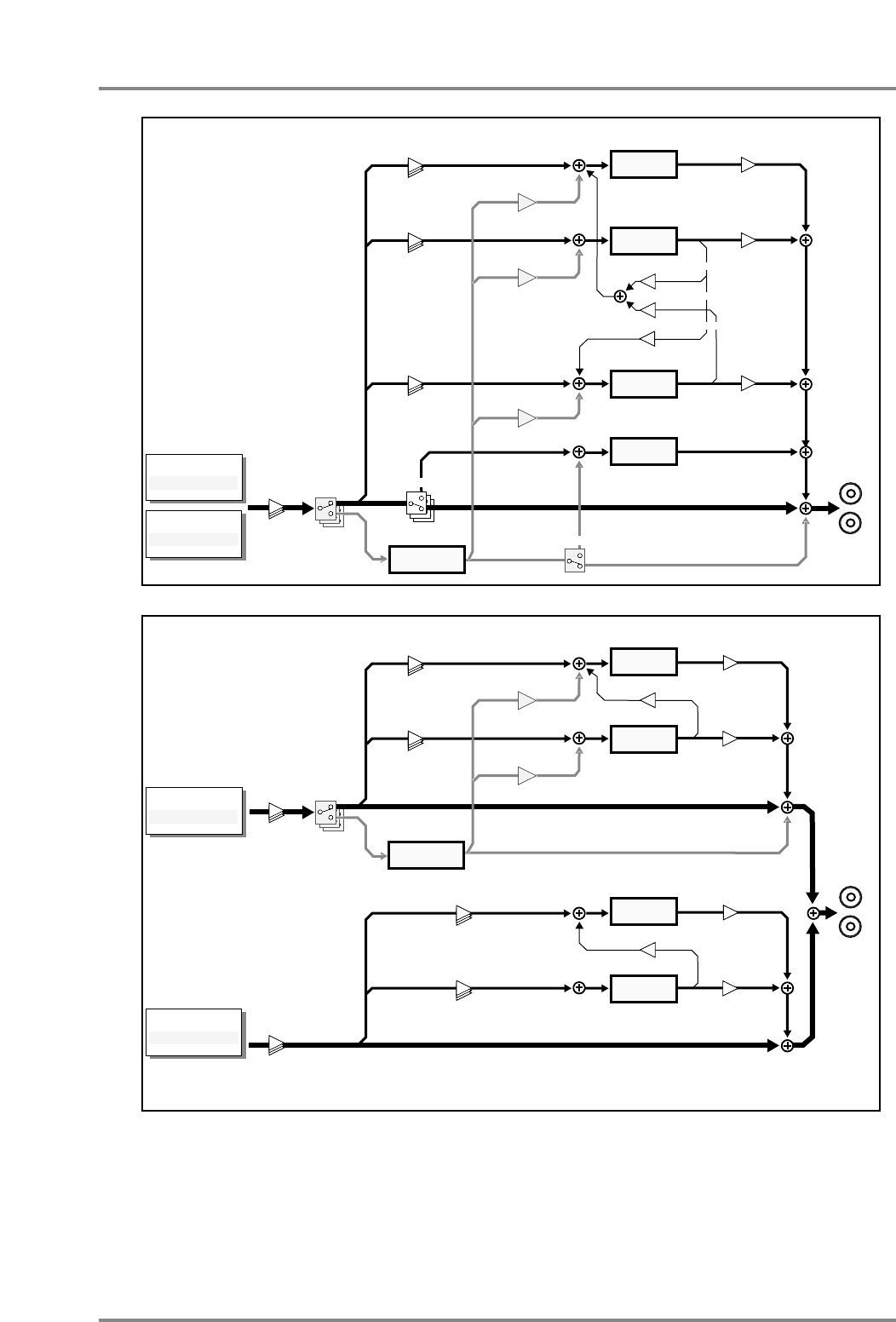

Single Module Mode
Equalizer
Reverb
Chorus
Delay
x32
x32
x32
x32
x32
x32
Chorus Send Level To Reverb
Delay Send Level To Reverb
Chorus Send Level To Delay
Insertion
Effect(EFX)
Equalizer On/Off
Equalizer On/Off
Level
Part group A
Part A1 - A16
Part group B
Part B1 - B16
OUTPUT
L
R
Reverb Level
Chorus Level
Reverb Send Level
Chorus Send Level
Reverb Send Level
Chorus Send Level
Double Module Mode
Reverb
Chorus
x16
x16
x16
x16
Chorus Send Level To Reverb
Level
Reverb Level
Chorus Level
Reverb Send Level
Chorus Send Level
Reverb
Chorus
x16
x16
x16
Chorus Send Level To Reverb
Level
Insertion effect
(EFX)
ON/OFF
Insertion effect
(EFX)
ON/OFF
Insertion
Effect(EFX)
* You can apply the Insertion effect to the Part in Group B, if the Part's MIDI Channel is set to A01 - A16.
