<OD (Overdrive/Distortion)>
OD Sel (OD Select) Odrv/Dist [1]
Select either Overdrive or Distortion.
+OD Drive (OD Drive) 0 - 127 [2]
Adjust the depth of overdrive or distortion. The vol-
ume will change together with the depth of distor-
tion.
OD Amp (OD Amp Simulator Type)
Small/BltIn/2-Stk/3-Stk [3]
Select the type of guitar amp for overdrive or distor-
tion.
Small : small amp
BltIn : single-unit type amp
2-Stk : large double stack amp
3-Stk : large triple stack amp
OD Amp Sw (OD Amp Switch) Off/On [4]
Turn the OD Amp parameter on/off.
OD Pan (OD Output Pan) L63 - 0 - R63 [16]
Set the stereo location of the overdrive or distortion
sound. L63 is far left, 0 is center, and R63 is far
right.
OD Level (OD Level) 0 - 127 [17]
Adjust the volume of the overdrive or distortion
sound.
<AW (Auto-wah)>
AW Filter (Auto-wah Filter Type) LPF/BPF [6]
Select the type of filter for the auto-wah.
LPF : The wah effect will be produced over
a broad frequency range.
BPF : The wah effect will be produced over
a narrow frequency range.
AW Sens (Auto-wah Sensitivity) 0 - 127 [7]
Adjust the sensitivity with which the auto-wah filter
will be controlled.
#AW Man (Auto-wah Manual) 0 - 127 [8]
Set the center frequency at which the auto-wah
effect will be produced.
AW Peak (Auto-wah Peak) 0 - 127 [9]
Adjust the way in which the wah effect will be
applied to the region of the center frequency. Lower
settings will produce a wah effect in a broad area
around the center frequency, and higher settings
will produce a wah effect in a narrower area around
the center frequency.
AW Rate (Auto-wah Rate) 0.05 - 10.0 [10]
Adjust the modulation speed of the auto-wah.
AW Depth (Auto-wah Depth) 0 - 127 [11]
Adjust the modulation depth of the auto-wah.
AW Pol (Auto-wah Polarity) Down/Up [12]
Set the direction in which the frequency will change
when the auto-wah filter is modulated. With a set-
ting of Up, the filter will change toward a higher fre-
quency. With a setting of Down, it will change
toward a lower frequency.
AW Pan (Auto-wah Output Pan)
L63 - 0 - R63 [18]
Adjust the stereo position of the auto-wah sound.
L63 is far left, 0 is center, and R63 is far right.
AW Level (Auto-wah Level) 0 - 127 [19]
Adjust the volume of the auto-wah sound.
Level (Output level ) 0 - 127 [20]
Adjust the output level.
63: PH / Rotary (Phaser, Rotary) [11H, 07H]
This connects a Phaser effect in parallel with a Rotary
effect.
<PH (Phaser)>
PH Man (Phaser Manual) 100 - 8.0k [1]
Adjust the center frequency at which the sound will
be modulated.
+PH Rate (Phaser Rate) 0.05 - 10.0 [2]
Adjust the modulation speed of the phaser.
PH Depth (Phaser Depth) 0 - 127 [3]
Adjust the modulation depth of the phaser.
PH Reso (Phaser Resonance) 0 - 127 [4]
Adjust the emphasis for the region around the cen-
ter frequency specified by the PH Man parameter.
PH Mix (Phaser Mix Level) 0 - 127 [5]
Adjust the proportion of the phase-shifted sound
that will be mixed with the direct sound.
PH Pan (Phaser Output Pan) L63 - 0 - R63 [16]
Set the stereo location of the phaser sound. L63 is
far left, 0 is center, and R63 is far right.
PH Level (Phaser Level) 0 - 127 [17]
Adjust the volume of the phaser sound.

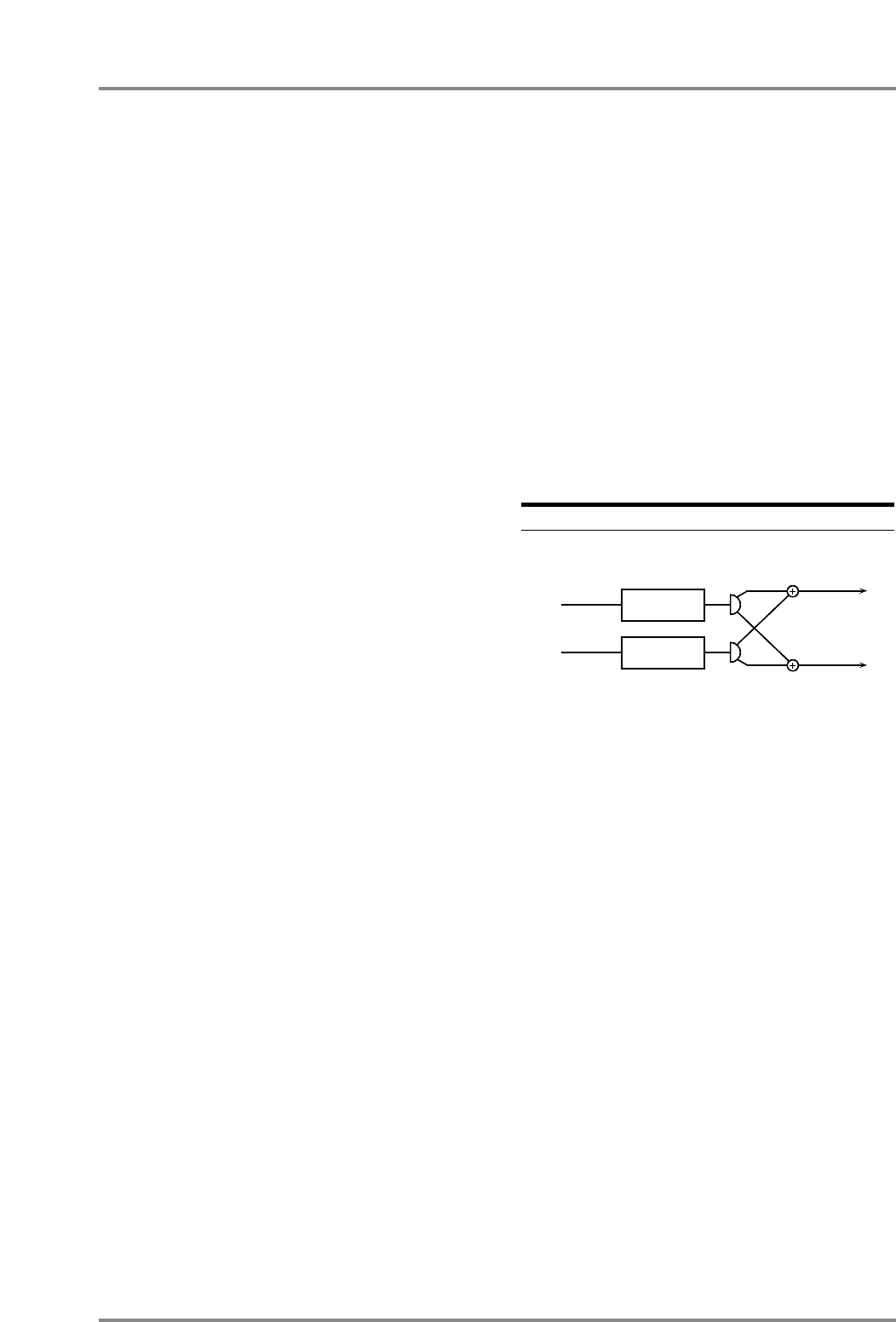

L
R
Rotary
Phaser
Pan
Pan
