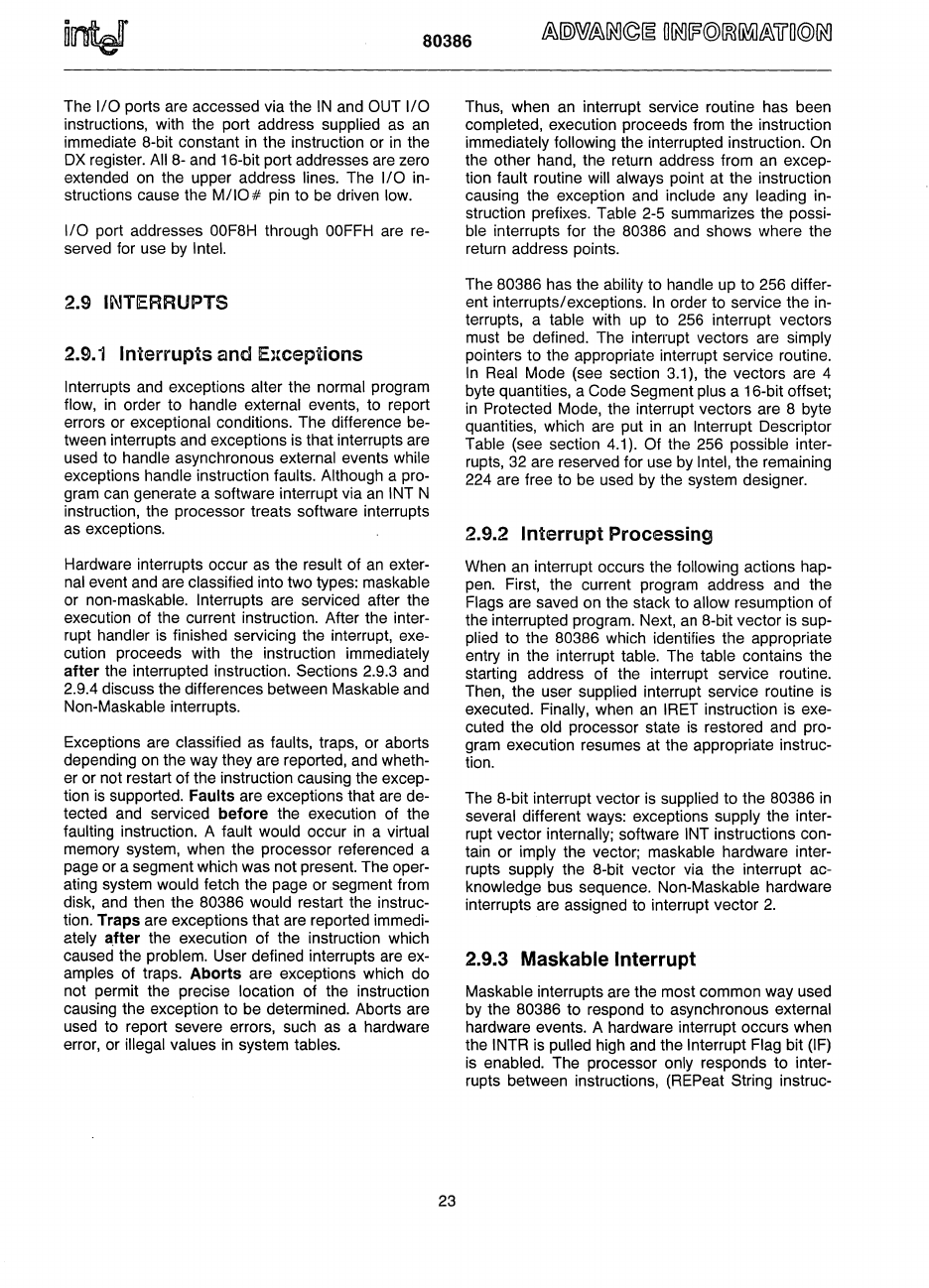

80386
The
1/0
ports are accessed via the
IN
and
OUT
1/0
instructions, with the port address supplied
as
an
immediate 8-bit constant
in
the instruction or
in
the
OX
register. All
8-
and 16-bit port addresses
are
zero
extended on the upper address
lines. The
1/0
in-
structions cause the
M/IO#
pin to
be
driven low.
1/0
port addresses 00F8H through
OOFFH
are
re-
served for use
by
Intel.
2.9 INTERRUPTS
2.9. i Interrupts and
E}(cep~ions
Interrupts and exceptions alter the normal program
flow,
in
order to handle external events, to report
errors or
exceptional conditions. The difference be-
tween interrupts and exceptions
is
that interrupts are
used to
handle asynchronous external events while
exceptions
handle instruction faults. Although a pro-
gram
can
generate a software interrupt via
an
INT N
instruction, the processor treats software interrupts
as exceptions.
Hardware interrupts occur as the
result of
an
exter-
nal
event and are classified into two types: maskable
or non-maskable. Interrupts are serviced after the
execution of the current instruction. After the
inter-
rupt handler
is
finished servicing the interrupt, exe-
cution proceeds with the instruction immediately
after the interrupted instruction. Sections 2.9.3 and
2.9.4 discuss the differences between
Maskable and
Non-Maskable interrupts.
Exceptions are
classified as faults, traps, or aborts
depending
on
the way they are reported, and wheth-
er
or not restart of the instruction causing the excep-
tion
is
supported. Faults are exceptions that
are
de-
tected and serviced before the execution of the
faulting instruction. A fault would occur
in
a virtual
memory system, when the processor referenced a
page or a segment which was not present. The
oper-
ating system would fetch the page or segment from
disk, and then the
80386 would restart the instruc-
tion.
Traps are exceptions that are reported immedi-
ately
after the execution of the instruction which
caused the
problem. User defined interrupts
are
ex-
amples
of traps. Aborts are exceptions which do
not permit the precise
location of the instruction
causing the exception to be determined. Aborts are
used to report severe errors, such
as
a hardware
error, or
illegal values
in
system tables.
23
Thus, when
an
interrupt service routine has been
completed, execution proceeds from the instruction
immediately following the interrupted instruction. On
the other hand, the return address from
an
excep-
tion fault routine will always point at the instruction
causing the exception and
include any leading in-
struction prefixes. Table 2-5 summarizes the possi-
ble
interrupts for the 80386 and shows where the
return address points.
The 80386 has the ability to
handle
up
to 256 differ-
ent interruptsl exceptions.
In
order to service the in-
terrupts, a table with
up
to
256
interrupt vectors
must
be
defined. The interrupt vectors are simply
pointers to the appropriate interrupt service routine.
In
Real
Mode (see section 3.1), the vectors are 4
byte quantities, a Code
Segment plus a 16-bit offset;
in
Protected Mode, the interrupt vectors are 8 byte
quantities, which are put
in
an
Interrupt Descriptor
Table (see section 4.1). Of the 256 possible inter-
rupts,
32
are reserved for
use
by Intel, the remaining
224 are free to
be
used
by
the system designer.
2.9.2 Interrupt Processing
When
an
interrupt occurs the following actions hap-
pen. First, the current program address and the
Flags are saved on the stack to allow resumption of
the interrupted program. Next,
an
8-bit vector is sup-
plied
to the 80386 which identifies the appropriate
entry
in
the interrupt table. The table contains the
starting address of the interrupt service routine.
Then, the user
supplied interrupt service routine
is
executed. Finally, when
an
IRET instruction is exe-
cuted the old processor state
is
restored and pro-
gram execution resumes at the appropriate instruc-
tion.
The 8-bit interrupt vector
is
supplied to the 80386
in
several different ways: exceptions supply the inter-
rupt vector internally; software INT instructions con-
tain or imply the vector; maskable hardware inter-
rupts supply the 8-bit vector via the interrupt ac-
knowledge
bus sequence. Non-Maskable hardware
interrupts are assigned
to
interrupt vector
2.
2.9.3 Maskable Interrupt
Maskable interrupts are the most common way used
by
the 80386 to respond to asynchronous external
hardware events. A hardware interrupt occurs when
the
INTR
is
pulled high and the Interrupt Flag bit
(IF)
is
enabled. The processor only responds to inter-
rupts between instructions, (REPeat String instruc-
