4.2.2.4. Setting the Source Gas and Diluent Flow Rates Using the GENERATE MAN
Menu
In the following demonstration we will be using the values from the examples given
with Equations 6-1 and 6-2 above and assume a T700 calibrator with at least one source
gas mass flow controller capable of 3.0 LPM output.

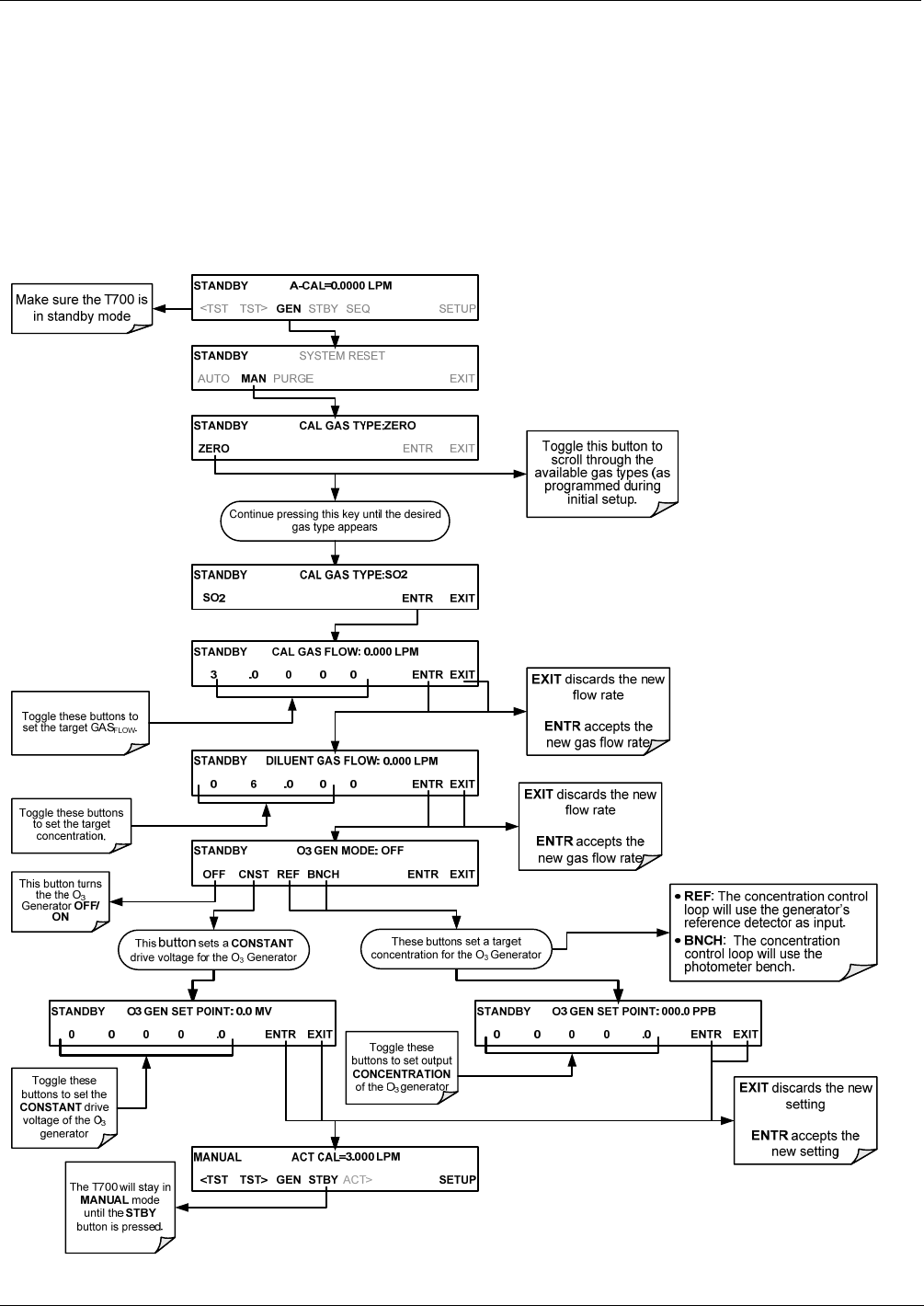

Using the example from Equations 6-1 and 6-2 above, press:
